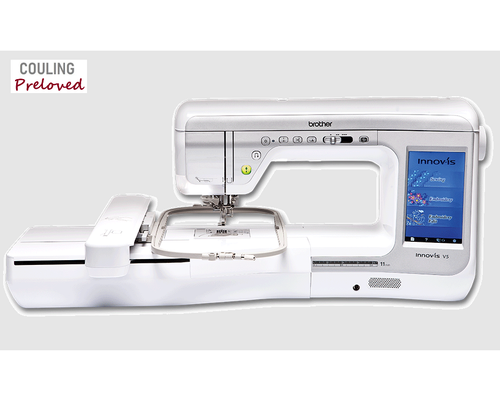

Creation With over 100 years of sewing excellence to its name, Brother introduces the new long arm Innov-is V5 sewing, quilting and embroidery machine. A perfect user-friendly machine with so many fantastic features and functions to discover.
Long arm sewing
The extra large long arm (111/4”, 285mm) gives you more space then ever. The Innov-is V5 gives a wide expanse of space for those extra-large quilting, and fashion, home décor projects.
LCD touch screen
The large, bright, clear, full colour LCD touch screen display offers user-friendly controls to select designs, edit embroidery patterns and adjust stitches. These supportive features make creating projects easy by previewing your designs in the full colour screen where you can also, with the touch of a button, add lettering, rotate, enlarge, reduce and combine easily and quickly.
New exquisite embroidery designs
Enjoy creating a range of unique and beautiful new embroidery and sewing projects around your home with designs such as the Classic Japanese, Vintage, Trendy and Zundt™.
Fast and accurate high speed embroidery
Save valuable time and embroider large intricate designs faster then ever with high speed embroidery of up to 1,050 stitches per minute. The simple slide-on frame mechanism lets you quickly attach and remove embroidery frames, whilst the automatic thread trimmers instantly cut jump threads to help save you time and effort
Import and export patterns instantly
Simply connect to your PC via the USB port, or insert a USB memory stick, to quickly and simply import or export designs. With the optional PE-Design software, you can convert numerous image files into stitch data. (PES).
Large embroidery area
The large 300mm x 180mm embroidery area is ideal for creating large elaborate embroidery designs.
Eco-mode (sleep)
With the Eco-mode function, the Innov-is V5 will automatically switch to an energy-saving sleep mode after a period of non-use – great for the environment and electricity bills too! Step back and forward +/- 500 stitches with this function over a design.
Ultra bright feature lighting
The ultra bright LED lighting gives a crisp bright natural light, so you can see colours and stitch details, no matter what your lighting conditions. The lighting brightness is fully adjustable so you can set it at a level to suit you and your environment
Extra-large colour touch screen
Simply touch the large clear wide angle screen to:
• Edit on-screen embroidery
• Customise your settings
• Change to any one of the 13 built-in languages
• Clock
• On screen video tutorials and built-in help guides to recommend the perfect setting for your sewing
Extra large sewing space
Create even larger projects with the flexible extra-large sewing space, ideal for quilting projects
Large embroidery area 300mm x 180mm Create large embroidery designs with no need to re-hoop
USB ports Connect a USB device such as a memory stick or a card reader/writer
7-point feed Super-smooth feeding for superior stitch quality
Lock stitch function Use the lock stitch key to automatically tie off stitches at the beginning or the end of the stitch
Knee lifter Free up your hands using this knee lift to raise/lower the presser foot. Ideal when working on larger projects such as quilts
Quick set bobbin Just drop in a full bobbin and be ready to sew immediately
ICAPS The Innov-is V5 Continuous Automatic Pressure System (ICAPS), continuously detects fabric thickness whilst you sew and automatically adjusts the foot pressure to give superior even stitch quality when stitching over differing fabric thicknesses. This is especially useful for free motion embroidery and ensures supersmooth constant stitching throughout
Hundreds of sewing stitches to select from With hundreds of extraordinary new embroidery and stitch designs to choose from, the Innov-is V5 is packed with creativity. From large intricate patterns to simple monogram fonts, it helps you select the right design or stitch for every application.
Wide stitches Sew extra large decorative stitches up to 40mm wide.
Crazy quilting design A range of specially designed new crazy quilt stitches are ideal for the avid quilter. These distinctive designs give you a fantastic range of choice perfect for any project.
Vintage design Add beautiful embellishments to your projects with a collection of these vintage inspired patterns.
Heirloom design Choose classic heirloom designs for special projects from christening gowns or wedding dresses to fine table linens.
‘I Love You’ design Create special stitched pieces for loved ones in 15 different languages with the ‘I love you’ design.
Multi-directional feed Be adventurous and sew straight in 8 directions, zigzag in 4, all without turning the fabric.
Embroidery patterns
The machine includes 227 embroidery designs and 17 embroidery fonts including Cyrillic and Japanese.
Accessories included:
Zigzag foot “J” (on machine)
Monogramming foot “N”
Overcasting foot “G”
Zipper foot “I”
Buttonhole foot “A”
Blind stitch foot “R”
Button fitting foot “M”
Embroidery foot “W”
Free motion open toe quilting foot “O”
Adapter
Screw (small)
Needle set: 75/11 Embroidery & Universal Mixed
Twin needle 2.0/11 needle
Bobbin × 10
Seam ripper
Scissors
Cleaning brush
Eyelet punch
Screwdriver (small)
Screwdriver (large)
Disc-shaped screwdriver
Vertical spool pin
Spool cap (small)
Spool cap (medium) × 2
Spool cap (large)
Spool cap (special)
Bobbin clip × 10
Spool felt
Spool net
Embroidery needle plate cover
Touch pen (stylus)
Knee lifter
USB cable
Bobbin case (gray, for bobbin work)
Cord guide bobbin cover (with single hole)
Bobbin cover (on machine)
Foot controller
Embroidery frame set (extra large) H 30 cm × W 20 cm (H 12 inches × W 8 inches)
Embroidery frame set (medium) H 10 cm × W 10 cm (H 4 inches × W 4 inches)
Embroidery bobbin thread
Stabilizer material
Grid sheet set
Chalk pencil
Dust cover
Accessory Bag
Operation Manual
Quick Reference Guide
