Brother Innov-is XP3 Luminaire Sewing Embroidery Quilting Machine (New Model 2022 - 2023) (Replaced XP1 & XP2)
Say hello to the Luminaire Innov-is XP3 – the latest and greatest sewing, embroidery and quilting machine from Brother.
- Revolutionary built-in projector
- Brother’s largest embroidery frame – 408 x 272 mm (16 x 10.7")
- Super long arm 13.1" (332 mm) workspace
- Hyper wide-view camera
- Camera detecting buttonhole function
- Over 1,500 embroidery designs – 192 are Disney!
- My Design Center
Machine Dimension (mm) 690 x 322 x 349
Weight (kg) - 20
A machine that’s as brilliant as your ideas.
Extraordinary features
Stitch with consistent quality, tie-off stitches at the touch of a button, feed denims and silks with ease, automatically sew buttonholes.Intuitive placement, professional results

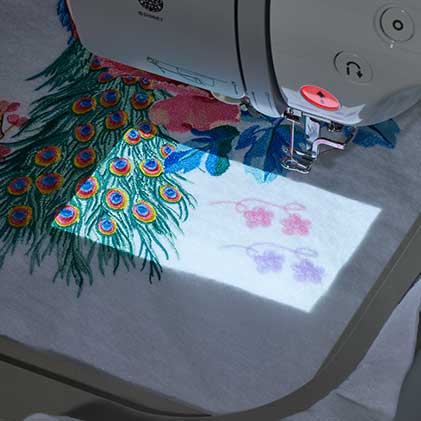

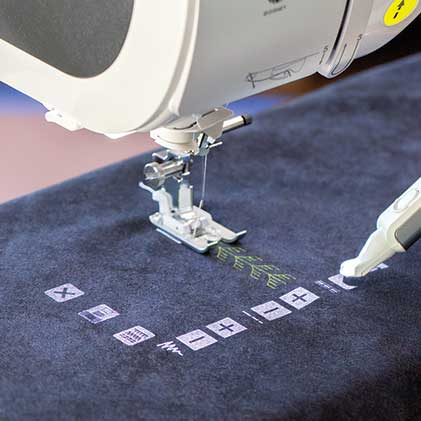

With high-resolution camera and StitchVision technology, you’ll see your designs come alive on your fabric. Get it right first time with projected guidelines and needle drop pointer.See it, scan it, sew it
Automatically create beautiful embroidery from hand-drawn designs, graffiti, pattern templates or even your signature. Customise on fabric, on screen and via connected apps.Size really does matter
Supersize yourself with Brother’s largest workspace, longest arm, biggest embroidery frame and the most generous selection of embroidery, stitch and quiltbroidery patterns on any of our machines.The Luminaire Innov-is XP3 is the ultimate word in luxury sewing experience. Packed with Brother’s revolutionary Stitchvision projection technology, over 1,500 embroidery patterns, 844 stitch designs, Disney magic, built-in design capabilities and wireless connectivity, it’s a machine that’s as brilliant as your ideas.
Stitch with consistent quality, tie-off stitches at the touch of a button, feed denims and silks with ease, automatically sew buttonholes.

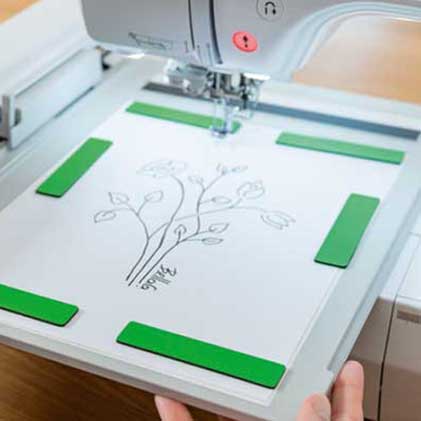

With StitchVision technology unlock the precise placement of stitches and embroidery designs. With our InnovEye technology you can even convert scanned images into embroidery data in just a few seconds – with no extra software required.
The ability to scan the entire embroidery area provides virtually endless creative options and helps take the guesswork out of your projects.

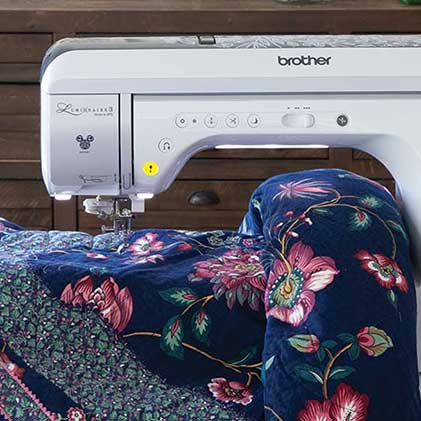

Size really does matter on the Luminaire XP3. With Brother’s largest workspace, longest arm and biggest embroidery frame oversize projects are effortlessly accommodated. Enjoy endless quilting with the Luminaire’s edge-to-edge quilting capability.
The Luminaire XP3 has powerful wireless capabilities, so you can transfer embroidery designs directly from your PC. You can even send your images from a smart phone or tablet, get alerts when it’s time to change thread and enable multiple Brother machines to work together. You can even connect your ScanNCut.
It’s a machine that’s as brilliant as your ideas.
The Luminaire Innov-is XP3 comes with built-in tutorials, so you’ll always have a sewing tutor at your side.
For more techniques, tutorials and inspiration download the Brother SupportApp here.
IN THE BOX
Accessories included:
- Zigzag foot “J” (on machine)
- Advanced monogramming foot „N+“
- Overcasting foot “G”
- Zipper foot “I”
- Buttonhole foot “A+”
- Buttonhole foot stabilizer
- Blind stitch foot “R”
- Button fitting foot “M”
- Compact dual feed foot
- Regular dual feed foot (on compact dual feed foot)
- Straight stitch foot
- Free motion quilting foot “C”
- Free motion echo quilting foot “E”
- Free motion open toe quilting foot “O”
- Embroidery Foot “W”
- ¼“ Quilting Foot (Piecing Foot) with Guide
- Adapter
- Screw (small)
- Needle set
- Twin needle
- Ball point needle set
- Bobbin × 10 (One bobbin is on machine.)
- Seam ripper
- Scissors
- Cleaning brush
- Eyelet punch
- Screwdriver (small)
- Screwdriver (large)
- Multi-purpose screwdriver
- Spool cap (small)
- Spool cap (medium) × 2 (One spool cap is on machine.)
- Spool cap (large)
- Thread spool insert (mini king thread spool)
- Spool Stand
- Spool cap (XL) x 2
- Spool holder x 2
- Spool cap base x 2
- Spool felt x 2
- Ring x 4
- Bobbin clip × 10
- Spool felt (on machine)
- Spool net × 2
- Embroidery needle plate cover
- Knee Lifter
- Alternate bobbin case (no colour on the screw)
- Standard bobbin case (green marking on the screw) (on machine)
- Straight Stitch Needle Plate
- Cord guide bobbin cover (with single hole)
- Bobbin cover (with mark) (on straight stitch neelde plate)
- Bobbin cover (on machine)
- Embroidery frame (medium) H 100 mm × W 100 mm (H 4 inches × W 4 inches)
- Embroidery frame (large) H 180 mm ×W 130 mm (H 7 inches × W 5 inches)
- Embroidery frame H 272 mm × W 272 mm (H 10-5/8 inches × W 10-5/8 inches)
- Embroidery frame (LL) H 408 mm × W 272 mm (H 16 inches × W 10-5/8 inches)
- Scanning frame
- Magnet × 6
- Embroidery bobbin thread
- Embroidery positioning sticker sheets x 2
- White calibration stickers (solid)
- Stabilizer material
- Grid sheet set
- Chalk pencil
- Dual purpose stylus
- Dual purpose stylus holder
- Accessory case
- Advanced multi-function foot controller
- Main foot controller
- Side pedal
- Mounting plate
- Mounting screw × 2 - Couching dual feed foot
- Yarn guide for sewing couching
- Embroidery couching foot “Y”
- Yarn guide for embroidery couching
- Yarn threader
- End point stickers (4 sheets, 243 stickers per sheet)
- Fine tipped stylus pen
- Dust cover
- Operation Manual (Sewing)
- Operation Manual (Embroidery)
- Embroidery Design Guide
- Disney Design Guide
Machine net weight 32KG.
Included accessories subject to change without notice.
Specification Details
Machine Information
Machine Size | X-Large |
---|---|
Product Type | Crafting, Embroidery, Quilting, Sewing |
Skill Level | Expert |
General Features
Accessory Box | Yes |
---|---|
Accessory Compartment | Yes |
Bobbin Type | Horizontal |
Machine Type | Electronic |
Insertion of Bobbin | Quick Set Bobbin |
Instructional Manual PDF Viewer | Yes |
Lighting | 8 LEDs |
Number Of Needles | 1 |
One-Finger Needle Plate Removal | Yes |
Connectivity
USB Port | 2 Hosts (2.0/2.0) / 0 Slave |
---|---|
Wi-LAN Function | Yes |
Design Database Transfer app for Windows PC | Yes |
My Design Snap App | Yes |
My Stitch Monitor App | Yes |
Display
Display Size | 10,1" |
---|---|
Type of Screen | High-Resolution IPS LCD-Touchscreen |
Embroidery Features
Colour Shuffling | Yes |
---|---|
Creating a Custom Thread Table | Yes |
Echo Quilting Around the Motif Button | Yes |
Embroidery Frame Clearance for Bobbin Change | Yes |
Font Size Selection (L-M-S) | Yes |
Jump Stitch Trim | Yes |
Max Embroidery Speed (Stitches per Minute) | 1050 |
Multiple Line Text Input | Yes |
My Design Center | Yes more enhanced |
New UI (Slide Scroll Operation) | Yes, Enhanced (Slide Scrolling, Pinch-in/out, Flick) |
Number of Hoops (Standard Accessory) | 4 |
Number of Spool Stands | 2 |
On Screen Video Tutorials | Yes |
Pattern - Size, Change Rotation & Mirror | Yes |
Progress Indication Bar | Yes |
Realistic Preview of Patterns | Yes |
Redo/Undo When Embroidery Editing | Yes |
Single Colour Pattern Converter | Yes |
Stippling Function | Trapunto-like Camera Scan and Add Stippling/ Stippling in Embroidery Edit/ Free Hand Quilitng |
Thread Colour Sorting | Yes |
Built-in Embroidery Frame Patterns | 140 (10 shapes x 14 stitch types) |
Built-In Lettering Styles (Embroidery) | 28 |
Built-In Patterns | 1554 |
Camera with Scan Function (Built-in Camera) | Background Scanning, Image Scanning, Live Camera Positioning, Viewing needle drop point |
Converting scanned images to embroidery data | Yes with My Design Center |
Couching Embroidery | Yes |
Embroidery Area in mm | 408 x 272 |
Embroidery Positioning Function | Live camera positioning, Projector embroidery |
Extension Wide Table | Optional |
Font Editing Functions/Multiple Lines and Alignment (L-C-R) | L-C-R |
Frames Included | 100 x 100 mm (4 x 4”), 180 x 130 mm (7 x 5”), 360 x 240 mm (14 x 9.5”), 408 x 272 mm (16 x 10.7”) |
LED Pointer | Embroidery foot included |
My Design Snap | Mobile app for perfect placement of embroidery designs |
Projector Embroidery Pointer | Yes |
Environment
Eco Mode (Auto Power Off/Sleep Mode) | Yes |
---|---|
Voltage | 220 - 240V |
Sewing Features
7 Point Feed Dog | Yes |
---|---|
Adjustable presser foot | Electronic |
Automatic reverse / reinforcement stitch | Yes |
Bobbin Work | Optional |
Built-In Lettering Styles | 3 |
Camera Detecting Buttonhole foot | Yes |
Circular Sewing | Optional |
Continuous Automatic Pressure System (ICAPS) | Yes |
Customizable Presser Foot Movement | Yes with enhanced UI |
Drop feed setting | Electronic |
Electronic slide speed control | yes |
Extension Wide Table | Optional |
Free Motion Embroidery Kit | Optional |
Knee lift | 5 Steps Electronic |
Lock stitch button | Yes |
Longer Feed Dog | Yes |
Longer J-Foot | Yes |
Max. Sewing Speed (Stitches per minute) | 1050 |
Max Sewing Speed for Decorative Stitches | 710 |
Mechanical Dual Feed | Optional |
Multi-Directional Sewing | Yes (up to 8 sideways) |
My Custom Stitch | Yes |
Needle Stop Position Control Up/Down | Yes |
Projector Guideline Marker | Yes |
Snap on Presser Feet System | Yes |
Speed control customised for zigzag width | Yes |
Workspace (cm) | 33.3 |
Buttonholes | 25 |
Combine stitches | Yes |
Direct Dual Feed | Yes |
End Point Setting Pin Function | Yes |
Free arm sewing | Yes |
Mirror imaging | Yes |
Multi-function foot controller | Yes |
Number of sewing stitches *incl. buttonholes | 844 |
Presser Foot Levelling Button | Yes |
Projector Gridline Marker | Yes (gridlines, 3 colours) |
Repeated single sewing | Yes |
SFDS (Square Feed Drive System) | Yes |
Stitch Length (mm) | 5 |
Stitch Width (mm) | 7 |
Warranty Information
Warranty | Brother 5 year Warranty *Commercial use only 1 year warranty |
---|
Threading
Adjustable Bobbin Winding Amount | Yes |
---|---|
Adjustable Thread Tension | Automatic |
Automatic Thread Cutter | Yes |
Bobbin Winder | Independant |
Lower Thread Sensor | Yes |
Upper Thread Sensor | Yes |
Needle Threading System | Automatic |
